Azure DevOps Pipelines — Build and Push a Docker image to AWS ECR

YAML for pipeline

.azure/azure-pipelines.yml
This file is our main pipeline and only triggers on the master branch.
It uses the templates/build.yml file as a template and will use the stages defined in that file.

trigger:
  branches:
    include:
      - master
pr: none
stages:
- template: templates/build.yml

.azure/templates/build.yml
This template defines a stage that consists of a single job made up of two steps. The first task will essentially run a docker build to create our image with a Dockerfile in the root directory of our repo and tagging it with the name defined in the variable DOCKER_REPOSITORY_NAME and with a version equal to the pipeline build ID $(Build.BuildId).
The second task will push this image to ECR

stages:
- stage: Docker
  displayName: Build & Push Docker image to AWS ECR
  jobs:
  - job: Build_and_Push
    displayName: Build & Push Docker image
    pool:
      vmImage: ubuntu-latest
    steps:
    - task: Docker@2
      displayName: Build an image
      inputs:
        command: build
        dockerfile: '$(Build.SourcesDirectory)/Dockerfile'
        buildContext: '$(Build.SourcesDirectory)'
        repository: $(DOCKER_REPOSITORY_NAME)

    - task: ECRPushImage@1
      inputs:
        awsCredentials: 'AWS_ECR'
        regionName: $(AWS_REGION)
        imageSource: 'imagename'
        sourceImageName: $(DOCKER_REPOSITORY_NAME)
        sourceImageTag: $(Build.BuildId)
        pushTag: latest
        repositoryName: $(DOCKER_REPOSITORY_NAME)

Commit and push these files to your repo’s master branch, and we will create the pipeline in Azure DevOps.

Create a project and pipeline in Azure DevOps

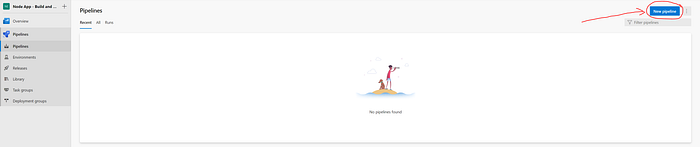

Create a new project in Azure Devops. Once created and in the project, click on “Pipelines” and then “new pipeline”.

After clicking “new pipeline”, select GitHub and then choose your repo you would like to…
